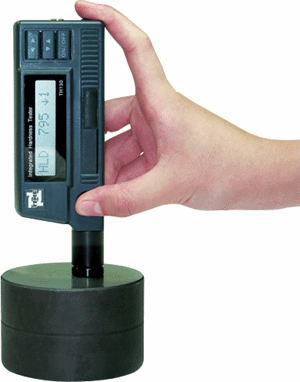

Digital Portable Hardness Tester TH 130

Digital Portable Hardness Tester TH 130

     Features:



                  Technical Specification:-



TH130

TH132

TH134

Impact device

D integrated

C integrated

DL integrated

Hardness scales

HLD, HB, HRC, HRA, HV. HS

HLD, HB, HRC, HV, HS

HLD, HB, HRC, HRB, HV, HS

Measuring range/materials

See table given below

Tolerance

6HLD(760 30HLD)

12HLC

12HLDL

Memory

99 average readings

99 average readings

99 average readings

Output

RS232 to printer

RS232 to printer

RS232 to printer

Surface Roughness of Work piece

1.6m [Ra]

0.4m [Ra]

1.6m [Ra]

Min. radius of Workpiece (convex / concave)

Rmin = 50mm(with support ring Rmin = 10mm)

Rmin = 11mm (with support rings)

Rmin = 10mm

Min. Workpiece weight

2~5kg on stable support 0.05~2kg with compact coupling

0.5~1.5kg on stable support 0.02~0.5kg with compact coupling

2~5kg on stable support 0.05~2kg with compact coupling

Min. Workpiece thickness with coupling

5mm

1mm

5mm

Min. Thickness of hardness layers

0.8mm

0.2mm

0.8mm

Indentation depth See table given below

Charging time

3h

Continuous working time

60 h

Power

Rechargeable Li-ion batteries

Operating temperature

0~40C

Overall dimensions

155 x 24 x 55mm

155 x 24 x 55mm

210 x 24 x 55mm

Weight

180g

175g

200g



              Measuring Range:-

Materials Hardness scale Impact Device
D/DC D + 15 C G E DL
Steel and cast steel HRC 17.9-68.5 19.3-67.9 20.0-69.5   22.4-70.7 20.6-68.2
HRB 59.6-99.6     47.7-99.9   37.0-99.9
HRA 59.1-85.8       61.7-88.0
HB 127-651 80-638 80-683 90-646 83-663 81-646
HV 83-976 80-937 80-996   84-1042 80-950
HS 32.2-99.5 33.3-99.3 31.8-102.1   35.8-102.6 30.6-96.8
Steel HB 143-650
CWT, ST HRC 20.4-67.1 19.8-68.2 20.7-68.2   22.6-70.2
HV 80-898 80-935 100-941   82-1009
Stainless steel HRB 46.5-101.7
HB 85-655
HV 85-802
GC, IRON HRC
HB 93-334     92-326
HV
NC, IRON HRC
HB 131-387     127-364
HV
C, ALUM HB 19-164   23-210 32-168
HRB 23.8-84.6   22.7-85.0 23.8-85.5
BRASS HB 40-173
HRB 13.5-95.3
BRONZE HB 60-290
COPPER HB 45-315

              Size of impact indentation

Hardness 300HV Indentation diameter 0.54 mm 0.54 mm 0.38 mm 1.03 mm
Indentation depth 24m 24m 12m 53m
Hardness 600HV Indentation diameter 0.54 mm 0.54 mm 0.32 mm 0.90 mm
Indentation depth 17m 17m 8m 41m
Hardness 800HV Indentation diameter 0.35 mm 0.35 mm 0.35 mm -
Indentation depth 10m 10m 7m -





     Standard Delivery

    Optional Accessory

Optional Support Rings: They are used for tested surface whose curvature radius is less than 30mm (D, DC, D + 15, C impact devices) or less than 50mm (G impact device)                                                                                                              Support Rings                                                                             Support Ring 1

      Support Rings

No. Type Sketch of non-conventional supporting ring Remarks
1. Z10 - 15 support ring 2 For testing cylindrical outside surface R10 ~ R15
2. Z14.5 - 30

For testing cylindrical out- side surface R14.5~R30

3. Z25 - 50 For testing cylindrical outside surface R25~R50
4. HZ11 -13 support ring 3 For testing cylindrical outside surface R25~R13
5. HZ12.5 - 17 For testing cylindrical in- side surface R12.5~17
6. HZ16.5 - 30 For testing cylindrical in- side surface R16.5~R30
7. K10 - 15 support ring 4 For testing spherical out- side surface SR10~SR15
8. K14.5 - 30 For testing spherical outside surface SR14.5~SR30
9. HK 11 - 13 support ring 5 For testing spherical inside surface SR11~SR13
10. HK 12.5 - 17 For testing spherical inside surface SR12.5~SR17
11. HK 16.5 - 30 For testing spherical inside surface SR16.5~SR30
12. UN support ring 5 For testing cylindrical outside surface, radius adjustable R10 ~ ∞



   Download the PDF catalogue for digital portable hardness tester TH130
